Thermic Fluid Heaters

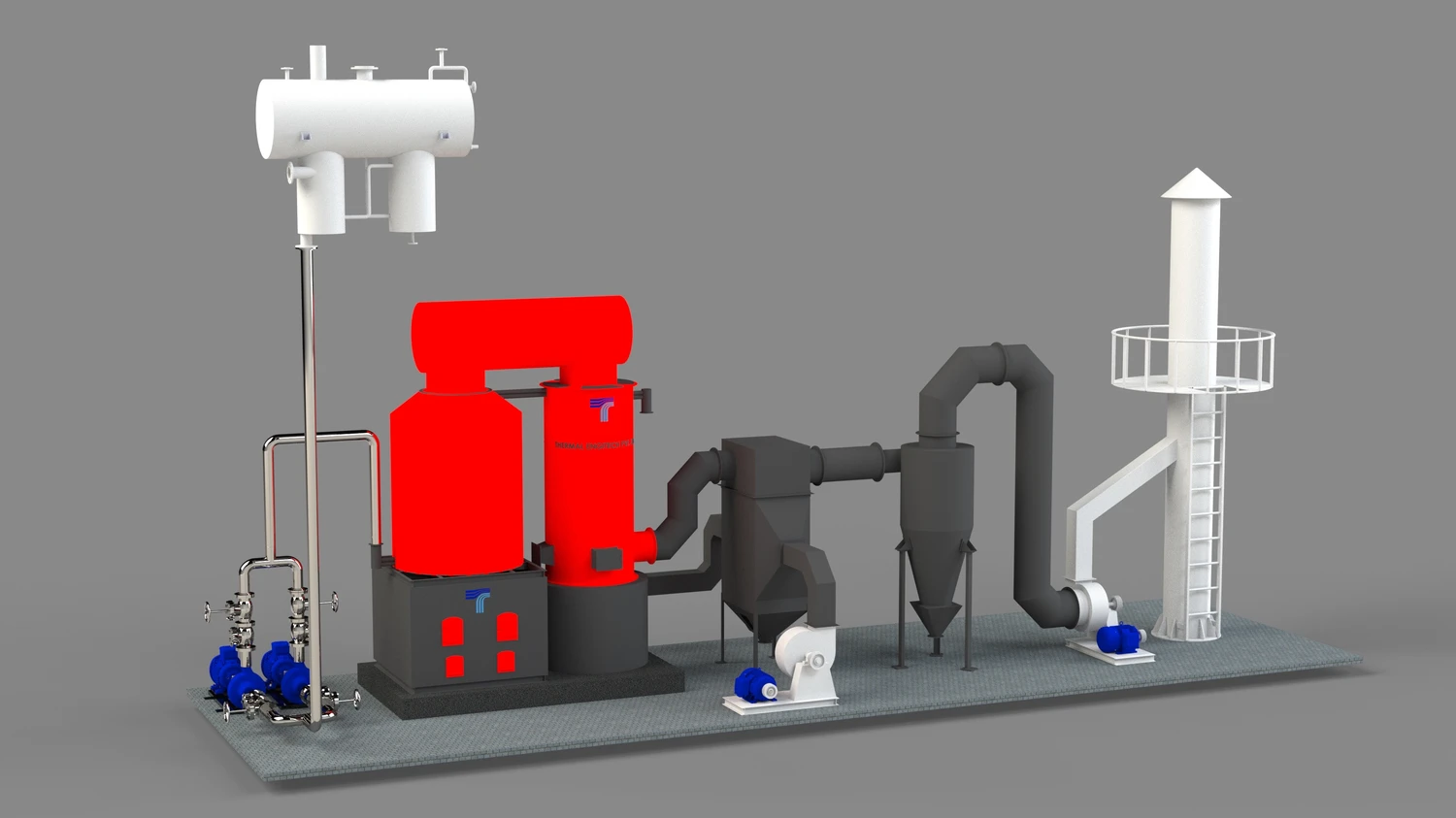

Wood/Coal Fired 4-Pass Vertical Thermic Fluid Heater
"Four-Pass Space Saving High-Thermal Exchange Matrix"
IBR 1950
Certified
Technical Specifications
Thermic Output
6,00,000 kcal/hr to 1,00,00,000 kcal/hr
Working Temperature
Normal process heating up to 250°C
Fluid Pressure Rating
Testing rating 10.0 kg/cm²; operational rating 4.5 kg/cm²
Exhaust Passage
Highly efficient 4-pass convective exhaust matrix
Safety Overrides
Fluid flow sensor, low oil level interlocks, digital PID temperature controllers
Key Performance Features
Space-saving vertical tower design consumes less than half the floor space of horizontal models
Highly innovative 4-pass flow design secures maximum temperature pickup across the coil coilings
Built-in soot-dropping hopper base prevents particulate ash buildup inside internal passes
Equipped with advanced alarm panels indicating fluid expansion drum level limits
